SL MiniMax for E-Bikes

Product information "SL MiniMax for E-Bikes"

The SL MiniMax for e-bikes offers a light output of up to 2100 lumens in the high beam. The low beam reaches 900 lumens.
An additional daytime running light function increases visibility during the day.

The range of the high beam is 210 metres. The integrated brightness sensor automatically activates the low/high beam when darkness falls.
The compact remote control is included in the delivery and is mounted directly next to the right handlebar grip. Low and high beam
are indicated by the button's green and blue backlighting. The lamp housing is made entirely of CNC-machined aluminum, just as the front cover.
The total weight of the lamp head is 100 grams. The delivery includes the selected CNC-machined aluminium bracket for mounting on
the handlebar. It is always mounted on the left hand side of the stem. With the optionally available extension kit, the mounting can also
be realised centrally on extra-wide stems.

The SL Minimax is waterproof and impact-resistant according to IK09 and IP67.

Properties "SL MiniMax for E-Bikes"

Bluetooth:	without Bluetooth
Handlebar Type:	Classic Handlebars
Highbeam:	with Highbeam \| Wired Remote
Lamp Holder:	Handlebar Clamp (fixed)
Lamp Type:	E-Bike light
Lumens:	2100 lumens
Lux:	250 Lux
Material:	Aluminium CNC-milled (6061-T6), black anodised
Measurements:	37 x 69 x 34mm
Protection Class:	IP 09 (impact resistance), IP 67 (water resistance)
Range:	210 m
StVZO Approval:	Yes (~K2258)

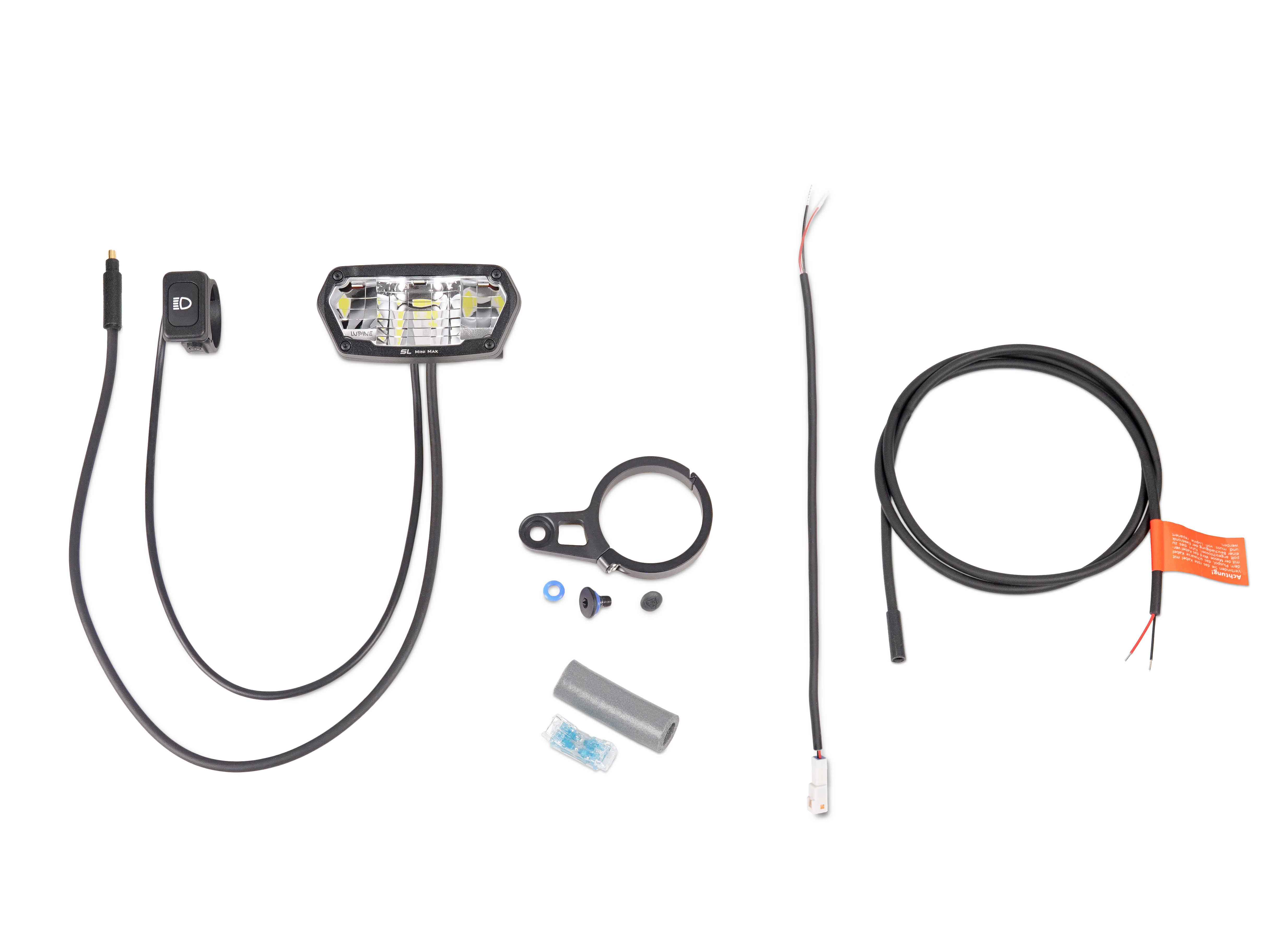

Delivery content "SL MiniMax for E-Bikes"

SL MiniMax Lamphead
Cable Wired Remote Control
Barmount
Screw & O-Ring
Lightcable Set with Plus Connection
Wolfhead Filler Plug

Compability "SL MiniMax for E-Bikes"

You are unsure whether the SL MiniMax is compatible with your e-bike? With the help of our compatibility list you can easily and quickly check:

Click here for the compatibility list
