SL X E-Bike Bosch Intuvia/Nyon
Produktnummer:
i3650
Produktinformationen "SL X E-Bike Bosch Intuvia/Nyon"
With up to 2800 lumens of high beam, the SL X is our brightest e-bike light with StVZO approval.

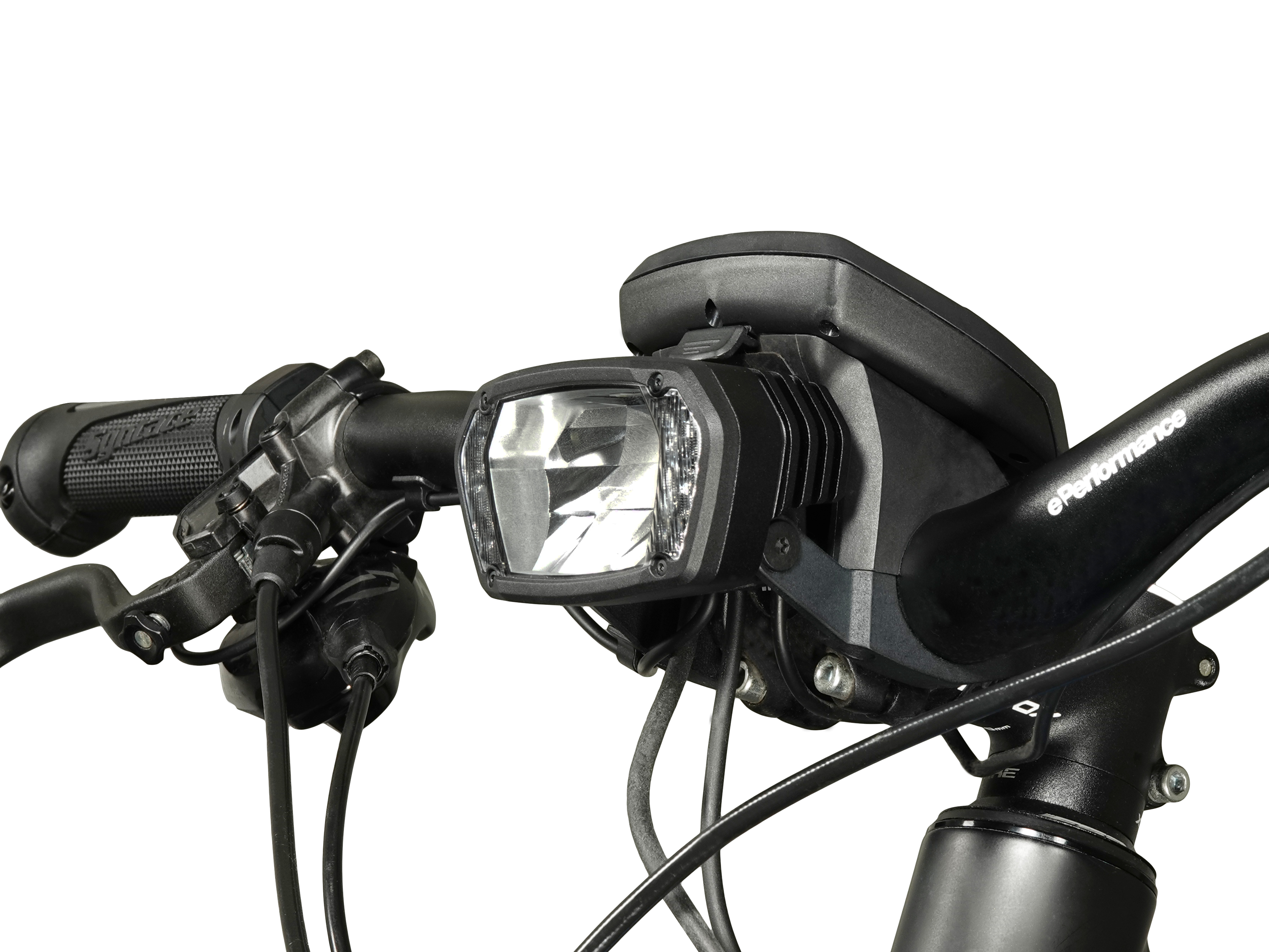

For mounting on a Bosch Intuvia/Nyon display, a bracket is included that replaces the bracket clip
below the display. The 900 lumen low beam ensures optimum visibility without dazzling oncoming
traffic. Out of town the high beam illuminates the road or trail for up to 370m. As soon as the brightness
sensor detects darkness, the SL X automatically switches from daytime running light to low beam.
At the same time, the high beam can be can be activated. This is connected to the lamphead via a cable
and is attached next to the handlebar grip. handlebar. The symbols indicate by green or blue
light whether you are in low beam or high beam. In addition to the factory setting, the SL X can be
individually programmed.
The black anodised housing made of The black anodised housing made of CNC-milled aluminium is
particularly durable, heat-resistant and has ideal heat conduction properties. The SL X is also
waterproof and impact-resistant according to IK09 and IP67. The lamp switches on automatically
when the motor of the e-bike is started. To switch it off, press and hold the button on the remote control.
_____________________________________________________________________________________For mounting on a Bosch Intuvia/Nyon display, a bracket is included that replaces the bracket clip
below the display. The 900 lumen low beam ensures optimum visibility without dazzling oncoming
traffic. Out of town the high beam illuminates the road or trail for up to 370m. As soon as the brightness
sensor detects darkness, the SL X automatically switches from daytime running light to low beam.
At the same time, the high beam can be can be activated. This is connected to the lamphead via a cable
and is attached next to the handlebar grip. handlebar. The symbols indicate by green or blue
light whether you are in low beam or high beam. In addition to the factory setting, the SL X can be
individually programmed.
The black anodised housing made of The black anodised housing made of CNC-milled aluminium is
particularly durable, heat-resistant and has ideal heat conduction properties. The SL X is also
waterproof and impact-resistant according to IK09 and IP67. The lamp switches on automatically
when the motor of the e-bike is started. To switch it off, press and hold the button on the remote control.
Notice:
The Bosch Nyon display can only be mounted in combination with the SL X in the central mounting
direction. Front mounting is not possible.
Future-proof: Your new e-bike provides more power for the light output than your old one? Simply
adjust the settings of your Simply adjust the settings of your SL X to the technical possibilities of your
e-bike and continue to get the maximum luminosity in the future. (18W: 1700 lumen max., 22W: 2100
lumen max., 26W: 2500 lumen max., 30W: 2800 lumen max.)
Eigenschaften "SL X E-Bike Bosch Intuvia/Nyon"
| Bluetooth: | mit Kabelfernbedienung |
|---|---|
| Display: | Intuvia, Nyon |
| Fernlicht: | mit Fernlicht | Kabelfernbedienung |
| Gewicht: | 170g |
| Lampenart: | E-Bike Beleuchtung |
| Lampenhalterung: | Lenkerhalter (fest montiert) |
| Lenkertyp: | Rundlenker |
| Lumen: | 2800 Lumen |
| Lux: | 340 Lux |
| Material: | Aluminium CNC-gefräst (6061-T6), schwarz eloxiert |
| Maße: | 45x85x48 mm |
| Motor: | Bosch |
| Reichweite: | 370m |
| Schutzklasse: | IK 09 (Schlagfestigkeit), IP 67 (Wasserdichtigkeit) |
| StVZO-Zulassung: | Ja (~K1753) |
Lieferumfang "SL X E-Bike Bosch Intuvia/Nyon"
- SL X lampehead (2023)
- Bosch mount for Nyon 2 Display
- Wired remote control
- Lightcableset Bosch
- Holderscrews
- Star drive key 6 and 15
- Manual
