SL Nano E-Bike Bosch Intuvia/Nyon
Produktnummer:
i7660
Produktinformationen "SL Nano E-Bike Bosch Intuvia/Nyon"

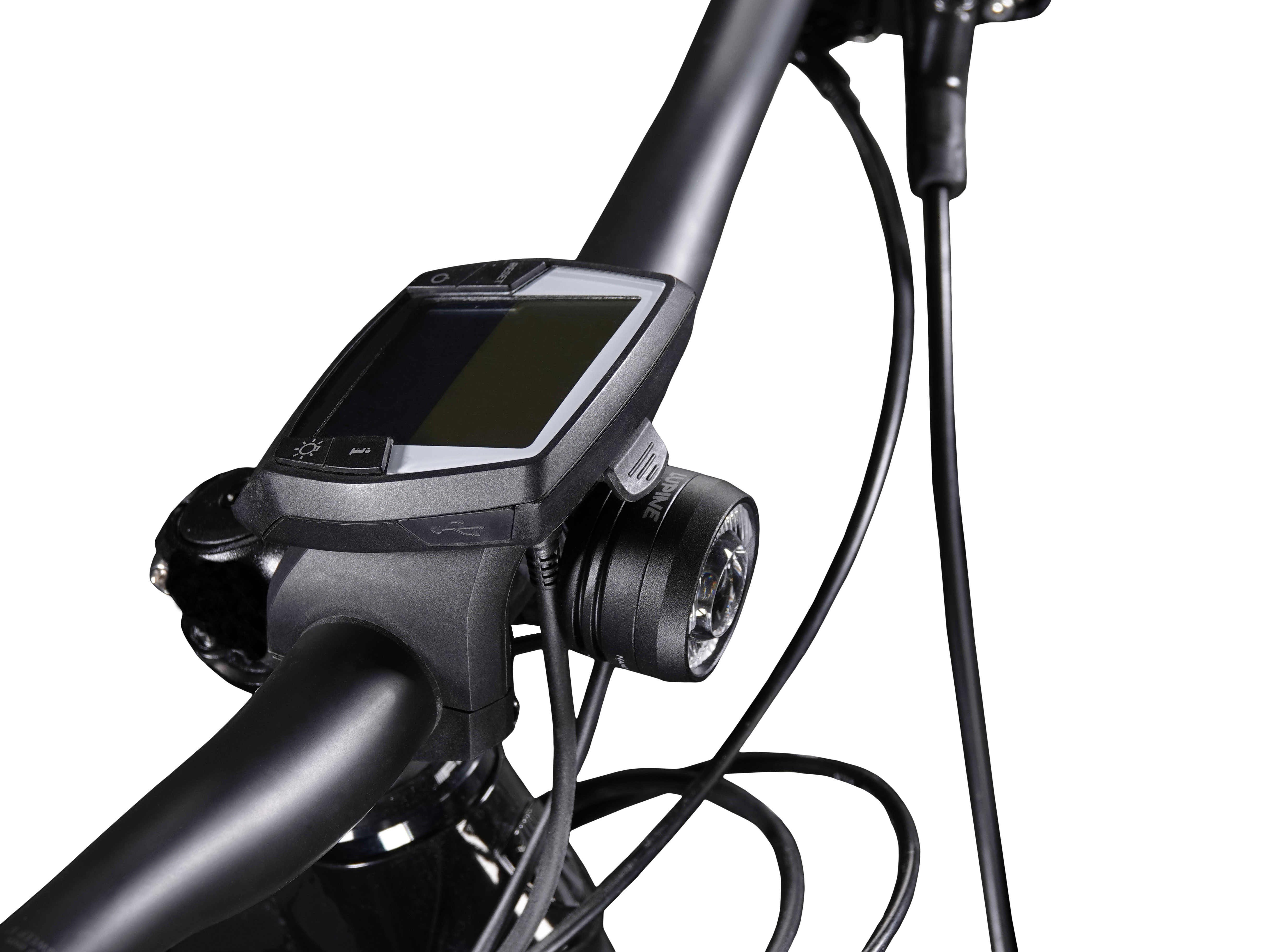

The SL Nano for e-bikes for mounting on a Bosch Intuvia or Nyon display.
You can choose between the versions with Bluetooth remote control, wired remote control and without remote control.
The SL Nano has a 700 lumen low beam and up to 1,000 lumen high beam (the version without remote control only has
a low beam). To mount the light, the lower left clamp of the Bosch display holder is replaced by the one for the SL Nano holder.
You can choose between the versions with Bluetooth remote control, wired remote control and without remote control.
The SL Nano has a 700 lumen low beam and up to 1,000 lumen high beam (the version without remote control only has
a low beam). To mount the light, the lower left clamp of the Bosch display holder is replaced by the one for the SL Nano holder.
Intuvia holder: compatible with the Bosch Intuvia and 1st generation Nyon.
Nyon holder: compatible with the 2nd generation Bosch Nyon (from 2020).
Nyon holder: compatible with the 2nd generation Bosch Nyon (from 2020).
_________________
NOTE:
The light cable of the SL Nano has a Shimano connection. Please order the matching light cable with motor connection for Bosch: Light cable for e-bikes - motor connection (2.0 & 3.0)
NOTE:
The light cable of the SL Nano has a Shimano connection. Please order the matching light cable with motor connection for Bosch: Light cable for e-bikes - motor connection (2.0 & 3.0)
Eigenschaften "SL Nano E-Bike Bosch Intuvia/Nyon"
| Farbtemperatur: | 6000 Kelvin (Tageslichtweiß) |
|---|---|
| Fernlicht: | ohne Fernlicht |
| Gewicht: | 52 g |
| Lampenart: | E-Bike Beleuchtung |
| Lumen: | 700 Lumen |
| Lux: | 130 Lux |
| Maße: | 41x30 mm |
| Reichweite: | 230 m |
| Schutzklasse: | IK 09 (Schlagfestigkeit), IP 67 (Wasserdichtigkeit) |
| StVZO-Zulassung: | Ja (~K1797) |
Lieferumfang "SL Nano E-Bike Bosch Intuvia/Nyon"
- SL Nano lamphead
- Bosch holder arm for Intuvia/Nyon display
- Lightcable
- 1x holder screw with o-ring blue
- Hex key 3mm
- Manual
